Renthal Bar Mounts D28 - Honda/Kawasaki

Honda CRF-R        2000 - 20

Yamaha YZ-F        2014 - 20

Kawasaki KX        2017 - 20

Check your bikes fitments at Fit My Bike

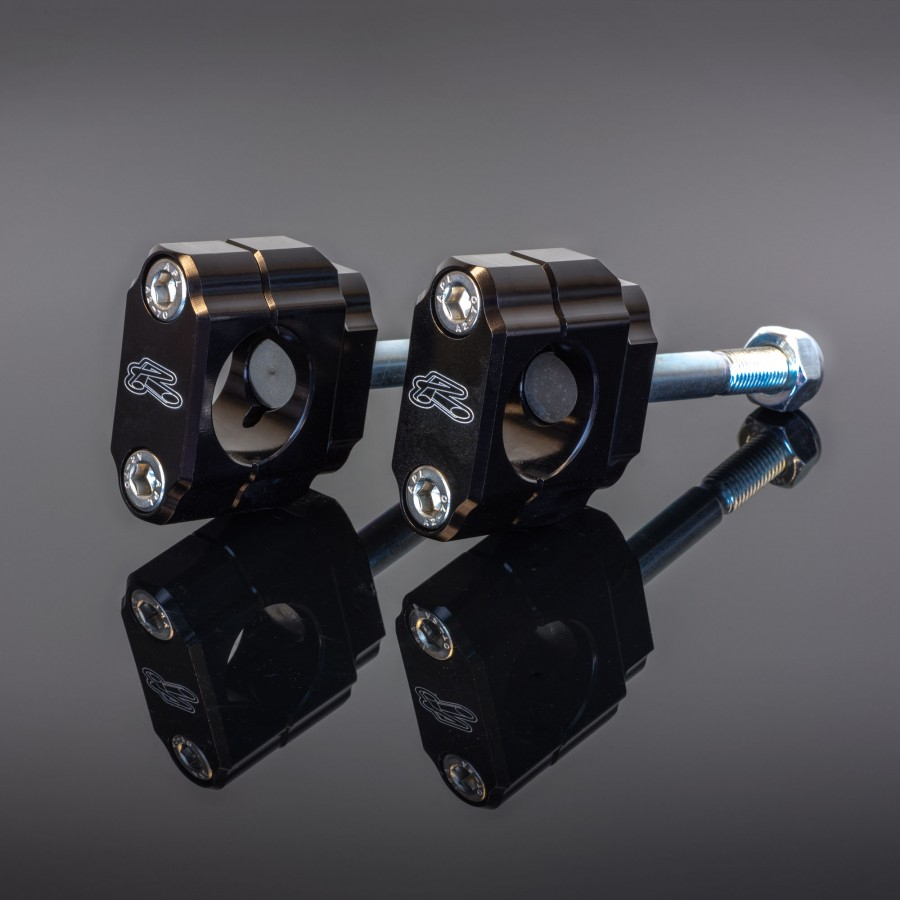

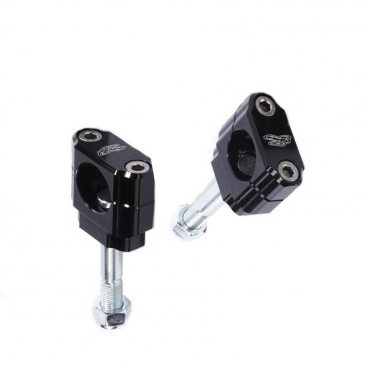

Renthal’s 1 1/8” (28.6mm) handlebar mounts are designed to allow the mounting of oversized 1 1/8” handlebars, such as the Twinwall or Fatbar, on certain model motorcycles which are equipped with 7/8” handlebars as standard.  These are CNC machined from 6082-T6 billet aluminum and black anodized with laser etched Renthal logo.

The mounting studs are a special CNC machined hardened nickel chromoly steel with a machined relief to allow for the bending of the stud in the event of a hard crash.  Our 1 1/8” mounts are meant to be a direct OEM replacement for the stock 7/8” mounts and will replicate the OEM bar position and height.

Sold as a pair.


• The clamps are CNC precision machined from 6082 T6 solid billet, high strength aluminium alloy.
• Precision CNC machining ensures a perfect fit between the handlebar and clamp for maximum clamping strength.
• The bolts are CNC machined from nickel chromium molybdenum 817M40 steel and the hardened and tempered to grade W strength.
• A unique bolt head design with part hemispherical seating blended into the shank minimises the chance of bolt failure.
• Renthal bar mounts are designed to replicate the bar postion of the OE bar mounts.
• Black anodised finish.
• Please note Renthal bar mounts are designed to utilize the OE rubber cones.
